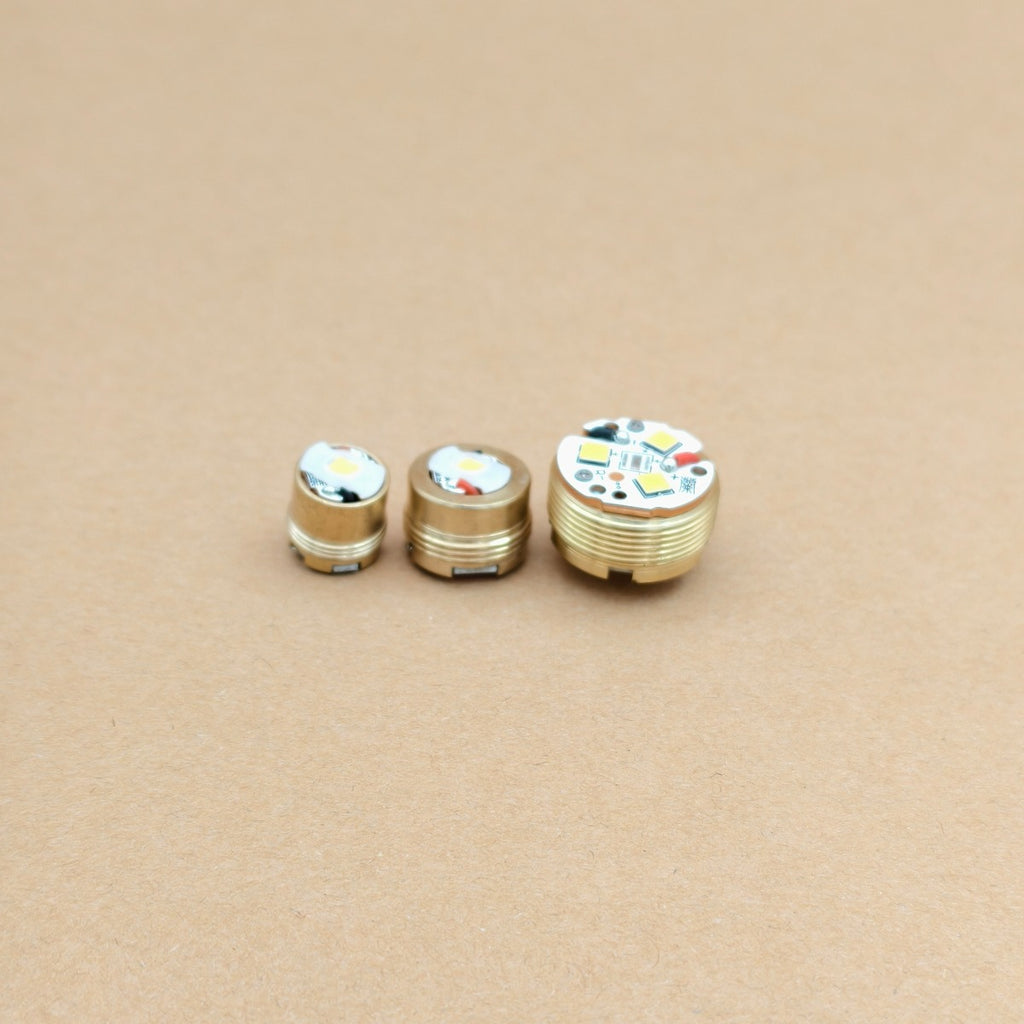

Pill assemblies

10440/AAA pill for Pineapple mini,  10880 (or double AAA) pill for Penlight.

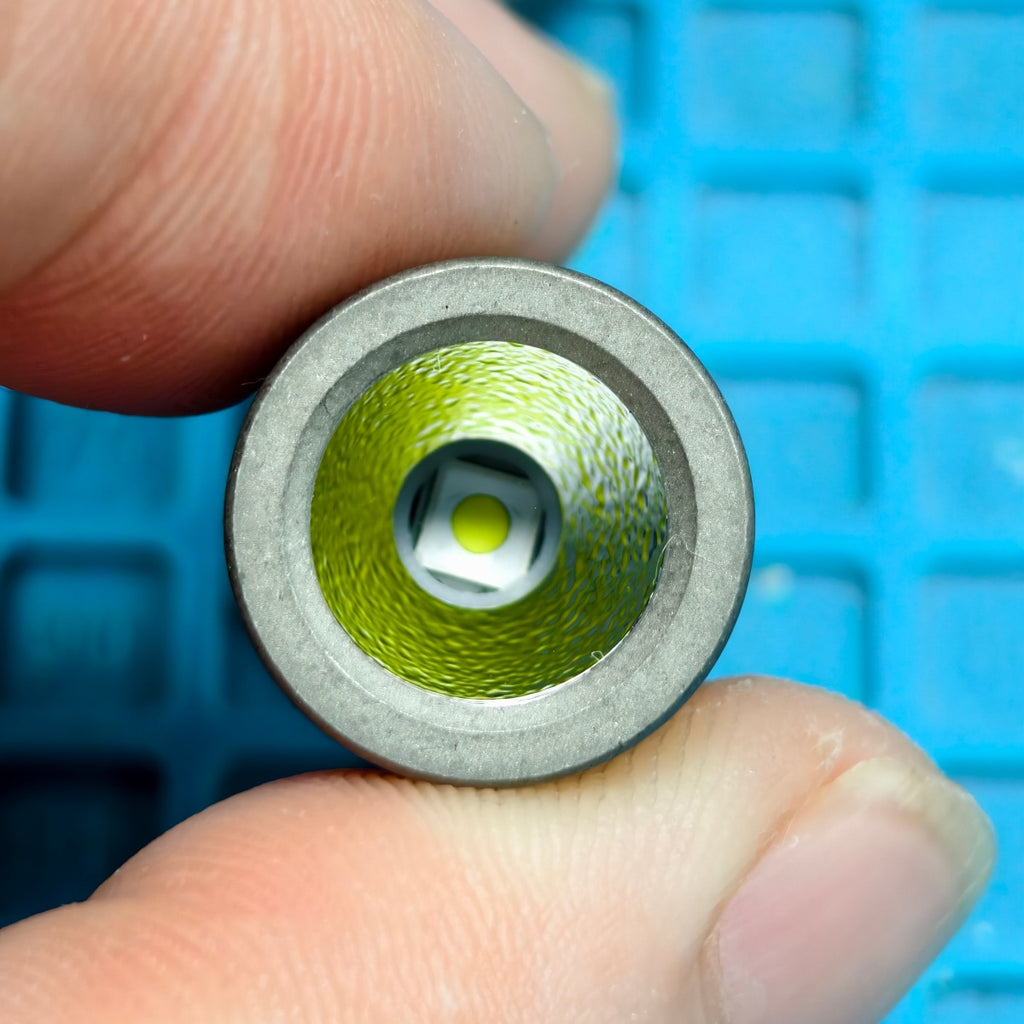

If you want to upgrade the earliest mini or penlight (made before 2020), which has a black disk on the led,  you'll need a new reflector.
The pills of Pineapple mini-10440 and Penlight-10880 are looking exactly the same.
pls do not mix them.  (10880 pill does not have low voltage protection.)
Either button top or flat top is ok.
Brass pill.
Green glow-in-dark gasket.
Nichia 519a R9080- 4000K
XPL HD- 3000K
XPL HI- 6000K



Dawn pill, fits Rook too.  Do not use 2x18350 batteries with this.
When swapping the pill, pls always keep the optic lens on the LEDs, in another way, always keep the LEDs facing the ceiling. If it's upside down, the optic lens might move/spin and kill the triple LEDs or wires.
Nichia 519a R9080- 4000K
XPL HI- 6000K

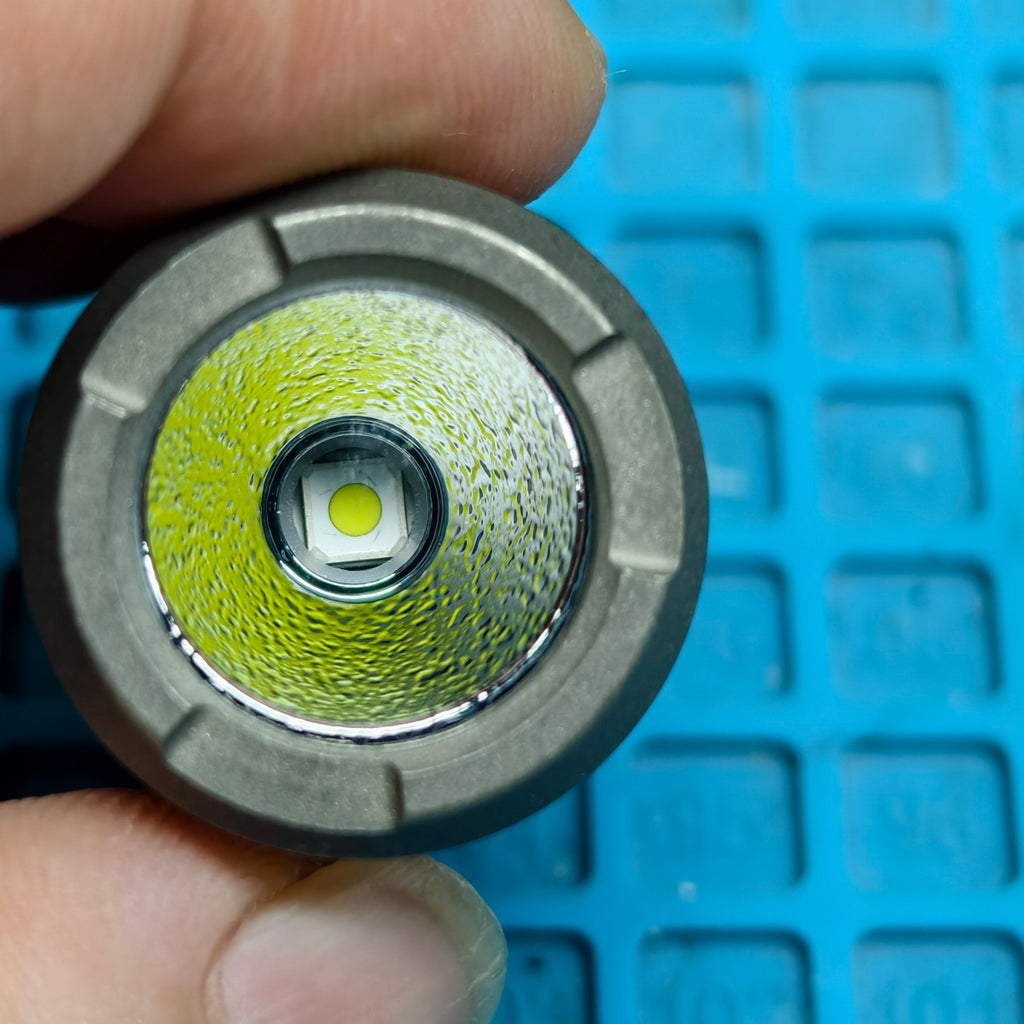

14500/AA pill-For ReyLight LAN/Pineapple/LANapple.  (Some old version might need a new reflector to match, the old one has a no-glow white disk on LED. Old retainer ring is not necessary to install.)
Button top battery is suggested.

It also fits Okluma DC0.
Brass pill.
Green glow-in-dark gasket.
Nichia 519a R9080- 4000K
XPL HD- 3000K
XPL HI- 6000K

NIMH is always good. AAA/AA Alkaline is ok, but please do not put this battery in light for long time of no using. It can leak and destroy the flashlight.
Energize Lithium batteries have been reported to have some issues.  Due to voltage and current protection, this battery might kick out at highest mode output. However, it's working ok with lower modes, or when the battery isn't so fresh.

The driver is programmable.  Click here for  the programming guide.
